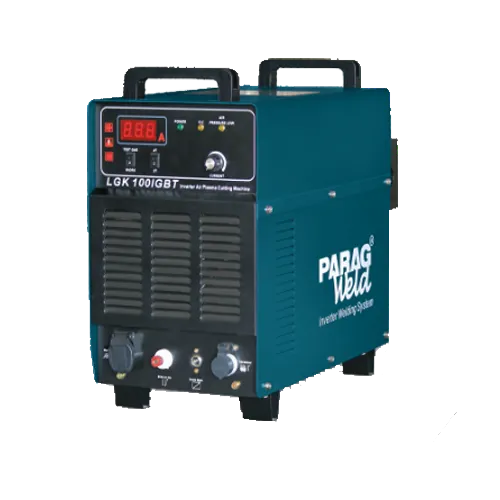

LGK Air Plusma Cutter Series 100
Products LGK Air Plusma Cutter Series 100
Product Description :-
| PARAMETERS | LGK 160 |
|---|---|
| Phase | Three |
| Input Voltage (VIN) | AC 415V 15% |
| Input Frequency (Hz) | 50/60 |
| Rated Input Power (kVA) | 15.8 |
| Rated Input Current (Amp) | 23 |
| No Load Voltage (V) | 295 |
| Output Current Range (A) | 30-100 |
| Rated Output Voltage (V) | 120 |
| Duty Cycle (%) | 80/40°C |
| No Load Loss (W) | 100 |
| Efficiency (%) | 90 |
| Power Factor | 0.86 |
| Insulation Grade | F |
| Housing Protection Grade | IP21S |
| Arcing Way | HF (Pilot Arc) |
| Air Pressure (kgf/cm²) | 4.5 - 5.5 |
| Cutting Plate Thickness (Max mm) | 1-20/1-30 |
| Cutting Plate Thick. (CNC Dross Free) | 12 |
| Weight | 35kg |
| Dimension (mm) | 636 x 290 x 535 |
